Borderless All-steel Anti-static Raised Floor
  • Borderless All-steel Anti-static Raised FloorBorderless All-steel Anti-static Raised Floor
  • Borderless All-steel Anti-static Raised FloorBorderless All-steel Anti-static Raised Floor
  • Borderless All-steel Anti-static Raised FloorBorderless All-steel Anti-static Raised Floor
  • Borderless All-steel Anti-static Raised FloorBorderless All-steel Anti-static Raised Floor

Borderless All-steel Anti-static Raised Floor

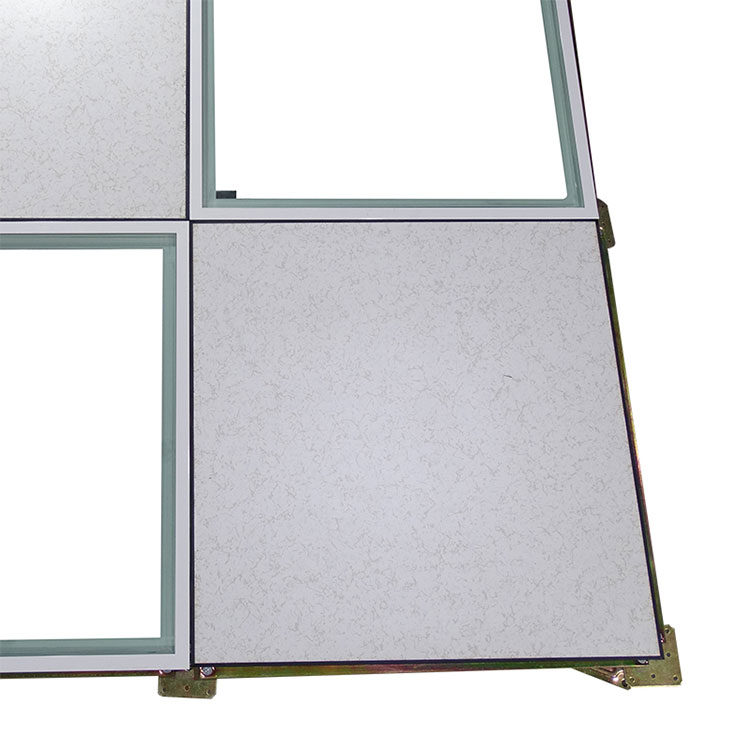

The borderless all-steel anti-static raised floor is made of high-quality alloy cold-rolled steel plates from Shanghai Baosteel Group, which are formed by spot welding after stretching. The surface is sprayed with plastic after phosphating, the inner cavity is filled with foamed cement, the upper surface is pasted with highly wear-resistant hemp surface anti-static melamine veneer (HPL) or PVC veneer, and conductive strips are embedded around it.

Send Inquiry

Product Description

The borderless all-steel anti-static raised floor is made of lower steel plate and upper steel plate, with foamed cement filled in the middle. The veneer is HP diphosphorus veneer, which is usually used in computer room control room classrooms.

System Assembly

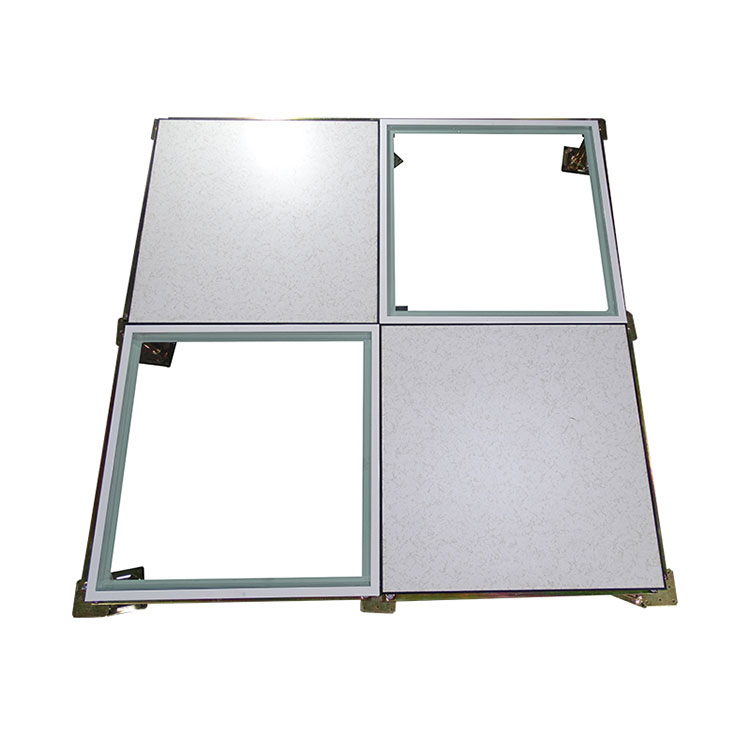

The system consists of floors, beams, and supports. The beams and the supports with adjustable heights are connected with screws to form a stable lower support system, and the floor is inlaid in the grid formed by the beams.


Technical parameters (standards met: GB/T36340-2018 and SJ/T10796-2017)

Model specification(mm) Concentrated load on the board Shock loads Ultimate load Evenly distributed loads Fire performance System resistance
N KG LB/KG N (N/m2) Ω
FS700 600×600×35 ≥2940 ≥300 100/45 ≥8850 ≥14710 ASTM E84-01:Flame spread:0
Smoke Density:0
Conductive type:10⁴-10⁶
Electrostatic consumption type:10⁶-10⁹
FS800 600×600×35 ≥3560 ≥363 100/45 ≥11250 ≥17780
FS1000 600×600×35 ≥4450 ≥454 150/68 ≥14500 ≥22220
FS1250 600×600×35 ≥5560 ≥567 150/68 ≥18360 ≥27780
FS1500 600×600×35 ≥6680 ≥680 175/68 ≥22170 ≥33340
FS2000 600×600×35 ≥8890 ≥907 175/68 ≥29420 ≥44450


Application

The borderless all-steel anti-static raised floor is widely used in computer rooms, satellite ground station rooms, radio control rooms, TV transmitter control rooms, microwave communication station rooms, program-controlled switch rooms, clean workshops, electronic instrument factory assembly workshops, confidential optical instrument manufacturing workshops, hospitals, schools and other places with anti-static requirements.


Borderless All-steel Anti-static Raised Floor
