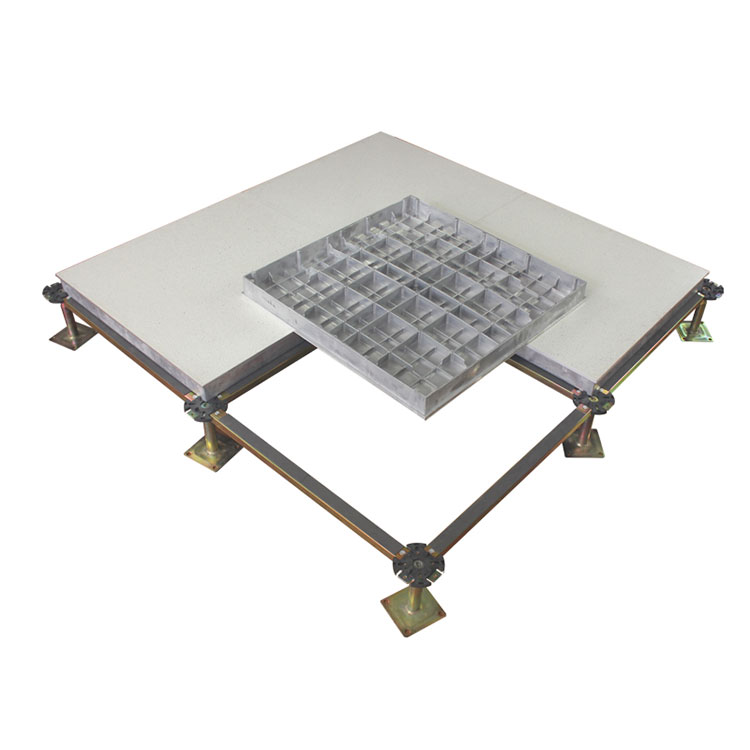

Clean Room Aluminum Alloy PVC Facial Electrostatic Floor
The clean room aluminum alloy PVC facial electrostatic floor is made of ADC12 cast aluminum (including aluminum alloy ventilation plate), which is completely made of aluminum alloy in one-time negative pressure casting, and combines the corrosion resistance and high strength characteristics of aluminum alloy. It has the characteristics of high dimensional accuracy, good electrical conductivity, good fire resistance, anti-magnetic, and not easy to deform. The performance is extremely stable, and it is the highest-end product among anti-static floors.
Send Inquiry
Product Description
Product specifications
| Product name | Clean Room Aluminum Alloy PVC Facial Electrostatic Floor |
| Product material | Aluminum alloy cold-rolled steel plate |
| Product substrate | A1n grade |
| Product veneer | FV-1 grade |
| Product specifications | 600 X 600 X 35mm |
| Floor thickness | 35mm |
| Concentrated load | 4450N |
| Uniform load | 23000N/㎡ |
| Model | Specifications (mm) | Concentrated load (deflection ≤ 2mm) | Ultimate load | Uniform load | Fire performance | System resistance | |
| N | KG | KG | (KG/m2) | Ω | |||
| OL300 | 600×600×55 | ≥2940 | ≥300 | ≥600 | ≥800 |
ASTM E84-01:Flame spread:0 Smoke Density:0 |
Conductive type: 104-106 Electrostatic consumption type: 106-109 |
| OL500 | 600×600×55 | ≥4900 | ≥500 | ≥1000 | ≥1250 | ||
| OL1000 | 600×600×55 | ≥9800 | ≥1000 | ≥2000 | ≥2000 | ||
| OL1250 | 600×600×55 | ≥11760 | ≥1200 | ≥2400 | ≥2400 | ||
| OL1500 | 600×600×55 | ≥14700 | ≥1500 | ≥3000 | ≥3000 | ||
| OL2000 | 600×600×55 | ≥19600 | ≥2000 | ≥4000 | ≥4000 | ||
Product Features
1. Fireproof, dustproof, corrosion-resistant, electromagnetic shielding;
2. Surface wear-resistant, no blistering, no degumming;
3. High dimensional accuracy, good electrical conductivity, super strong load-bearing capacity, and performance never decays;
4. High-end, the product can be recycled and reused without depreciation.
Application range
Clean room aluminum alloy PVC facial electrostatic floor is widely used in military command, aerospace center, large financial data processing center and ultra-clean workshop and other places with extremely strict requirements.
